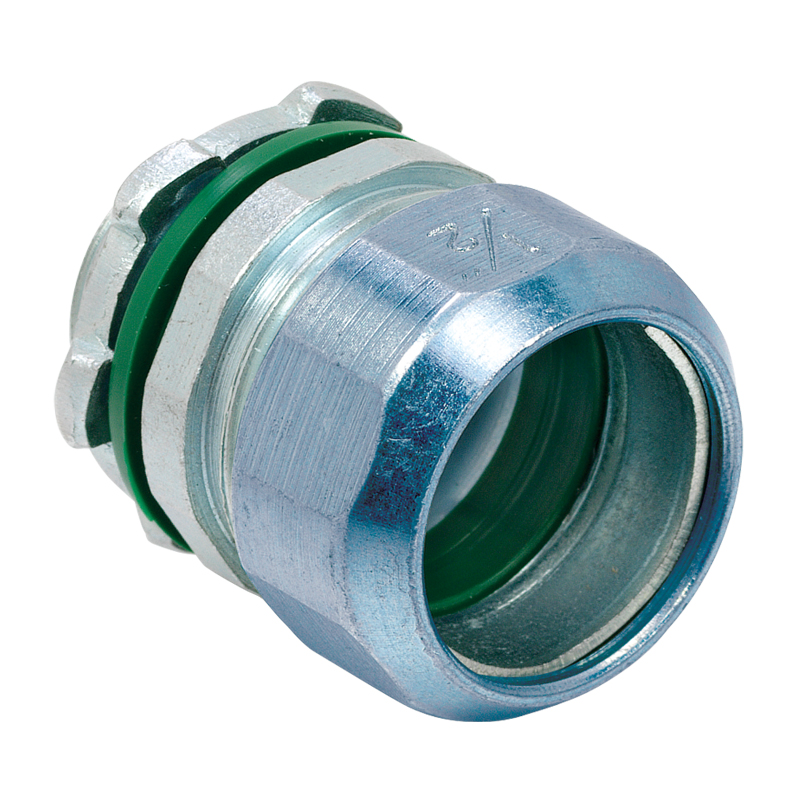

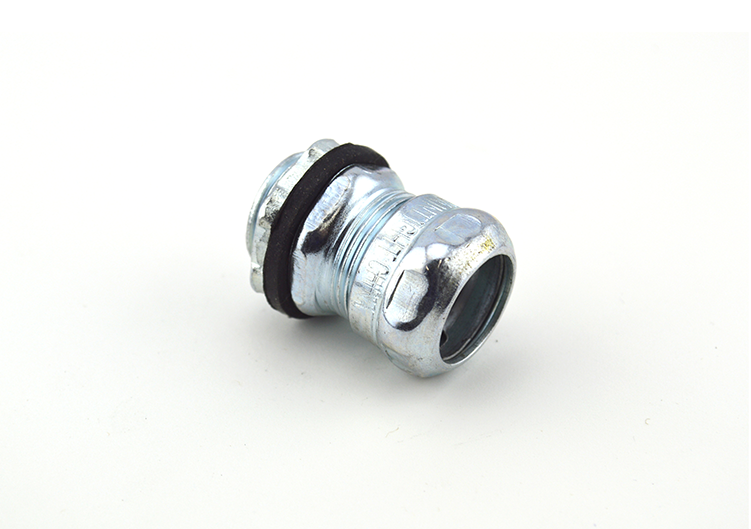

Raintight Screw-on EMT Compression Connector 1/2", Steel

Item Code: 503684
Catalog Number 250-SRT

Fetching product details


Description

Use Bridgeport’s 250-SRT 1/2" Raintight Screw-on EMT Compression Connectors to join electrical metallic tubing to an electrical box or enclosure in wet environments. Patented SRT connectors come with an internal sealing ring, BUNA-N knockout gasket and NPSM threads for creating a raintight connection between the conduit and a box knockout. A steel construction and zinc plating makes this connector both strong and highly corrosion resistant in harsh environments. To install, simply insert EMT into the fitting and tighten the compression ring to secure the tubing in place. Then, join the connector to a box knockout using the provided locknut. Available in trade sizes 1/2" to 4", SRT raintight screw-on EMT compression connectors are UL Listed under File No. E24001 and are NEMA TYPE 2, 3, 3R and 4.

Purchasing Quantities

EACH

1

BOX

25

CASE

250

Specifications

  • Brand : Bridgeport Fittings
  • Category : Conduit Fittings - Steel
  • Country of Origin : China
  • Finish : Zinc Electro-Plated
  • Length : 1.75 in
  • Material : Steel
  • Warranty Length : 1 yr
  • Weight : 13.8 lbs
  • Width : 1.375 in
Starting from
$4.57 / EA
/
- +
